Universal rods


Opis

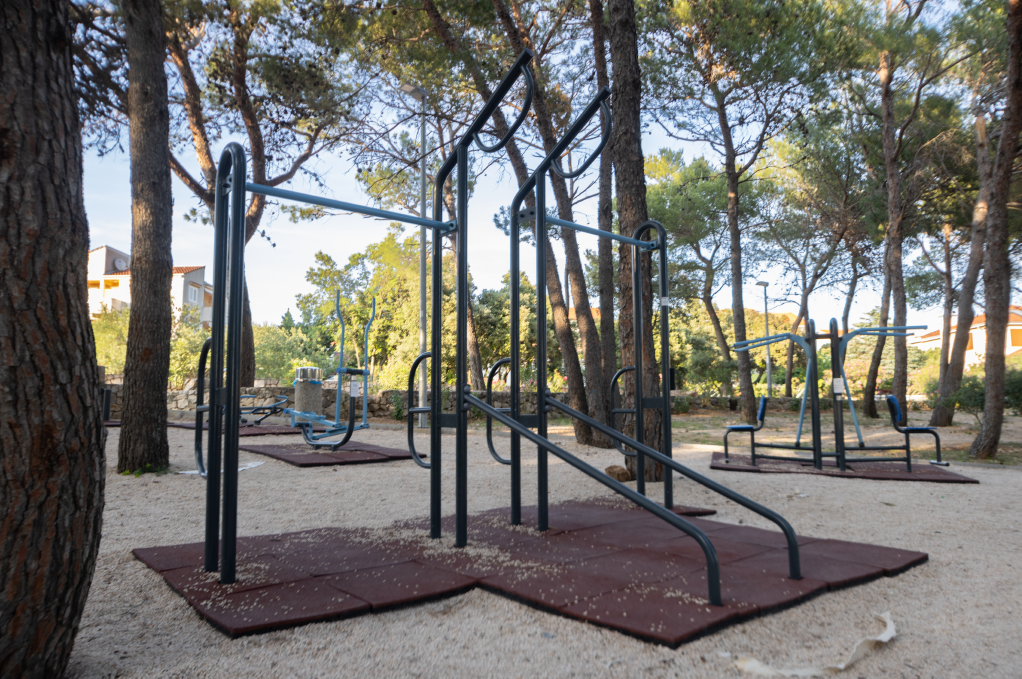

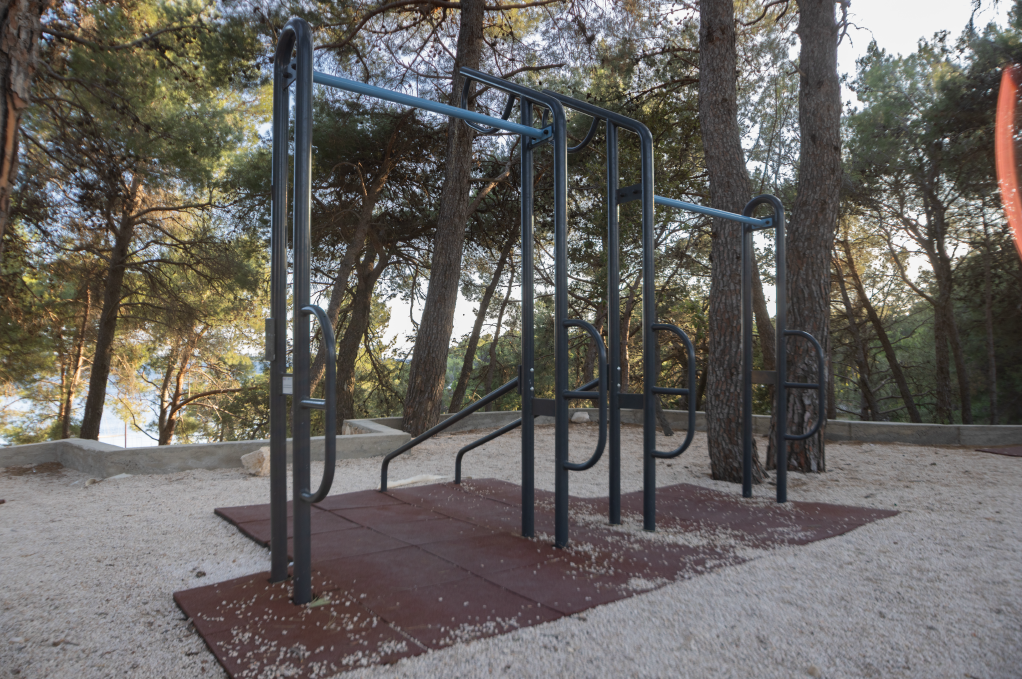

The construction of the multifunctional device consists of four bearing sections made of an Ø60mm height of approx. 2300mm.

The double structure is bended in the upper part by a semicircular bend in the radius of 160mm and over the steel anchor plates of 8mm thickness are based on screws in the concrete.

Horizontal gears are positioned between the end structures.

On the central part of the load-bearing structure, a steel groove is placed in the bottom zone inclined forward from the Ø42mm profile.

The Ø42mm profile is bent in a radius of 42mm at both ends, starting at 8 mm thick anker steel plates with screw holes. In the upper zone of the center of the device are metal lifting grips.

Price on request
Specification
